SAE O-Ring Seal Fitting
16011

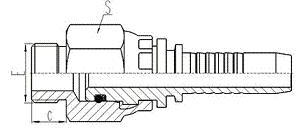

SAE O-RING MALE SEAL
| PART NO. | E | HOSE BORE | DIMENSIONS |
| THREAD E | DN | DASH | C | S |
| 16011-04-04 | 7/16"X20 | 6 | 4 | 9.1 | 14 |
| 16011-05-04 | 1/2"X20 | 6 | 4 | 9.1 | 17 |
| 16011-06-05 | 9/16"X18 | 8 | 5 | 9.9 | 17 |
| 16011-06-06 | 9/16"X18 | 10 | 6 | 9.9 | 17 |
| 16011-08-06 | 3/4"X16 | 10 | 6 | 11.1 | 22 |
| 16011-08-08 | 3/4"X16 | 12 | 8 | 11.1 | 22 |
| 16011-10-08 | 7/8"X14 | 12 | 8 | 12.7 | 27 |
| 16011-10-10 | 7/8"X14 | 16 | 10 | 12.7 | 27 |
| 16011-12-10 | 1.1/16"X12 | 16 | 10 | 15.1 | 32 |
| 16011-12-12 | 1.1/16"X12 | 20 | 12 | 15.1 | 32 |
| 16011-16-16 | 1.5/16"X12 | 25 | 16 | 15.1 | 38 |
Note: 1.For use with braided hoses.
2. If use with spiral hoses, hose fitting series number is 16012
16011SW
SAE O-RING BOSS SWIVEL MALE
| PART NO. | E | HOSE BORE | DIMENSIONS |
| THREAD E | DN | DASH | C | S |
| 16011SW-04-04 | 7/16"X20 | 6 | 4 | 9.1 | 19 |
| 16011SW-06-05 | 9/16"X18 | 8 | 5 | 9.9 | 22 |
| 16011SW-06-06 | 9/16"X18 | 10 | 6 | 9.9 | 22 |
| 16011SW-08-06 | 3/4"X16 | 10 | 6 | 11.1 | 27 |
| 16011SW-08-08 | 3/4"X16 | 12 | 8 | 11.1 | 27 |
| 16011SW-10-08 | 7/8"X14 | 12 | 8 | 12.7 | 27 |
| 16011SW-10-10 | 7/8"X14 | 16 | 10 | 12.7 | 27 |
| 16011SW-12-10 | 1.1/16"X12 | 16 | 10 | 15.1 | 32 |
| 16011SW-12-12 | 1.1/16"X12 | 20 | 12 | 15.1 | 32 |
| 16011SW-16-16 | 1.5/16"X12 | 25 | 16 | 15.1 | 41 |
Note: 1.For use with braided hoses.
2. If use with spiral hoses, hose fitting series number is 16012SW
16091SW
90 SAE O-RING BOSS SWIVEL MALE
| PART NO. | E | HOSE BORE | DIMENSIONS |
| THREAD E | DN | DASH | C | S1 | S2 |
| 16091KSW-04-04 | 7/16"X20 | 6 | 4 | 9.1 | 16 | 19 |
| 16091KSW-06-05 | 9/16"X18 | 8 | 5 | 9.9 | 16 | 22 |
| 16091KSW-06-06 | 9/16"X18 | 10 | 6 | 9.9 | 16 | 22 |
| 16091KSW-08-06 | 3/4"X16 | 10 | 6 | 11.1 | 19 | 27 |
| 16091KSW-08-08 | 3/4"X16 | 12 | 8 | 11.1 | 19 | 27 |
| 16091KSW-10-08 | 7/8"X14 | 12 | 8 | 12.7 | 27 | 27 |
| 16091KSW-10-10 | 7/8"X14 | 16 | 10 | 12.7 | 27 | 27 |
| 16091KSW-12-10 | 1.1/16"X12 | 16 | 10 | 15.1 | 27 | 32 |
| 16091KSW-12-12 | 1.1/16"X12 | 20 | 12 | 15.1 | 27 | 32 |
| 16091KSW-16-16 | 1.5/16"X12 | 25 | 16 | 15.1 | 36 | 41 |
Note: 1.For use with braided hoses.
2. If use with spiral hoses, hose fitting series number is 16092KSW
