JIS GAS 60 Cone Seal Fitting
Product Introduction

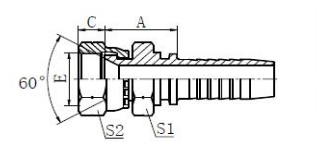

JIS GAS 60 Cone Seal Fitting
29611
90 °JIS GAS FEMALE 60° CONE SEAT
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS |
| DN | DASH | C | S1 | S2 |
| 29611-02-03 | G1/8"X28 | 4 | 3 | 6.5 | 14 | 14 |
| 29611-04-04 | G1/4"-19 | 6 | 4 | 8 | 19 | 19 |
| 29611-04-05 | G1/4"-19 | 8 | 5 | 8 | 19 | 19 |
| 29611-06-04 | G3/8"X19 | 6 | 4 | 9 | 22 | 22 |
| 29611-06-06 | G3/8"-19 | 10 | 6 | 9 | 22 | 22 |
| 29611-08-06 | G1/2"X14 | 16 | 10 | 11.5 | 27 | 27 |
| 29611-08-08 | G1/2"-14 | 12 | 8 | 12 | 27 | 27 |
| 29611-10-10 | G5/8"X14 | 16 | 10 | 11.5 | 20 | 30 |
| 29611-12-10 | G3/4"X14 | 16 | 10 | 13.5 | 32 | 32 |
| 29611-12-12 | G3/4"-14 | 20 | 12 | 13.5 | 32 | 32 |
| 29611-12-10 | G3/4"-14 | 16 | 10 | 13.5 | 32 | 32 |
| 29611-16-16 | G1"-11 | 25 | 16 | 16 | 41 | 41 |
| 29611-20-20 | G1.1/4"-11 | 32 | 20 | 18.5 | 50 | 50 |
| 29611-24-24 | G1.1/2"-11 | 40 | 24 | 19 | 55 | 55 |
| 29611-32-32 | G2"-11 | 50 | 32 | 23 | 70 | 70 |
29641
45 JIS GAS FEMALE 60° CONE SEAT
| PART NO. | E | HOSE BORE | DIMENSIONS |
| THREAD E | DN | DASH | A | C | H | S1 | S2 |
| 29641-04-04 | G1/4"X19 | 6 | 4 | 43.4 | 8 | 21.3 | 19 | 19 |
| 29641-06-06 | G3/8"X19 | 10 | 6 | 48.9 | 9 | 24.6 | 22 | 22 |
| 29641-08-08 | G1/2"X14 | 12 | 8 | 62.5 | 12 | 27.5 | 27 | 27 |
| 29641-12-12 | G3/4"X14 | 20 | 12 | 81.3 | 13.5 | 33.9 | 32 | 32 |
| 29641-16-16 | G1"X11 | 25 | 16 | 87.3 | 16 | 36 | 41 | 41 |
| 29641-20-20 | G1.1/4"X11 | 32 | 20 | 107 | 18.5 | 46.5 | 50 | 50 |
| 29641-24-24 | G1.1/2"X11 | 38 | 24 | 123 | 19 | 50.8 | 55 | 55 |
| 29641-32-32 | G2"X11 | 51 | 32 | 143 | 23 | 60 | 70 | 70 |
Note: 1.For use with braided hoses.
2. If use with spiral hoses, hose fitting series number is 29642
29691
90 JIS GAS FEMALE 60o CONE SEAT
| PART NO. | E | HOSE BORE | DIMENSIONS |
| THREAD E | DN | DASH | C | S1 | S2 | H |
| 29691-04-04 | G1/4"X19 | 6 | 4 | 8 | 19 | 19 | 38 |
| 29691-06-06 | G3/8"X19 | 10 | 6 | 9 | 22 | 22 | 45.8 |
| 29691-08-08 | G1/2"X14 | 12 | 8 | 12 | 27 | 27 | 53 |
| 29691-10-10 | G5/8"X14 | 16 | 10 | 11.5 | 30 | 30 | 61 |
| 29691-12-12 | G3/4"X14 | 20 | 12 | 13.5 | 32 | 32 | 69 |
| 29691-16-16 | G1"X11 | 25 | 16 | 16 | 41 | 41 | 76.5 |
| 29691-20-20 | G1.1/4"X11 | 32 | 20 | 18.5 | 50 | 50 | 90 |
| 29691-24-24 | G1.1/2"X11 | 40 | 24 | 19 | 55 | 55 | 105 |
Note: 1.For use with braided hoses.
2. If use with spiral hoses, hose fitting series number is 29692
