BSP 60 Cone Seal Fitting
12611

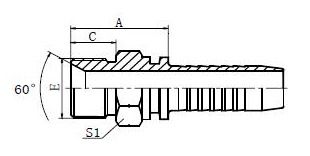

BSP MALE 60 CONE SEAT
| P/N | THREAD E | HOSE BORE | DIMENSIONS |
| DN | DASH | A | C | S1 |
| 12611-04-04 | G1/4"X19 | 6 | 4 | 24.5 | 12 | 14 |
| 12611-06-05 | G3/8"X19 | 8 | 5 | 26 | 13.5 | 17 |
| 12611-06-06 | G3/8"X19 | 10 | 6 | 27.5 | 13.5 | 17 |
| 12611-06-08 | G3/8"X19 | 12 | 8 | 16.5 | 13.5 | 19 |
| 12611-08-06 | G1/2"X14 | 10 | 6 | 30.5 | 16 | 22 |
| 12611-08-08 | G1/2"X14 | 12 | 8 | 31 | 16 | 22 |
| 12611-10-08 | G5/8"X14 | 12 | 8 | 32.5 | 17.5 | 24 |
| 12611-10-10 | G5/8"X14 | 16 | 10 | 33.5 | 17.5 | 24 |
| 12611-12-08 | G3/4"X14 | 12 | 8 | 35.5 | 18.5 | 27 |
| 12611-12-10 | G3/4"X14 | 16 | 10 | 37 | 18.5 | 27 |
| 12611-12-12 | G3/4"X14 | 20 | 12 | 36.5 | 18.5 | 27 |
| 12611-16-12 | G1"X11 | 20 | 12 | 40.5 | 20.5 | 36 |
| 12611-16-16 | G1"X11 | 25 | 16 | 41.5 | 20.5 | 36 |
| 12611-20-16 | G1.1/4"X11 | 25 | 16 | 43.5 | 20.5 | 46 |
| 12611-20-20 | G1.1/4"X11 | 32 | 20 | 44.5 | 20.5 | 46 |
| 12611-24-20 | G1.1/2"X11 | 32 | 20 | 49 | 23 | 50 |
| 12611-24-24 | G1.1/2"X11 | 40 | 24 | 46 | 23 | 50 |
| 12611-32-32 | G2"X11 | 50 | 32 | 53.5 | 25.5 | 65 |
22611

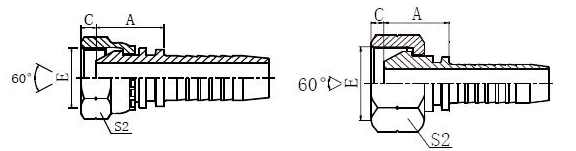

BSP FEMALE 60 CONE SEAT
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS |
| DN | DASH | A | C | S2 |
| 22611-02-03 | G1/8"X28 | 5 | 3 | 15 | 5.5 | 14 |
| 22611-04-03 | G1/4"X19 | 5 | 3 | 17 | 5.5 | 19 |
| 22611-04-04 | G1/4"X19 | 6 | 4 | 18 | 5.5 | 19 |
| 22611-04-05 | G1/4"X19 | 8 | 5 | 18 | 5.5 | 19 |
| 22611-04-06 | G1/4"X19 | 10 | 6 | 18 | 5.5 | 19 |
| 22611-06-04 | G3/8"X19 | 6 | 4 | 19 | 6.3 | 22 |
| 22611-06-05 | G3/8"X19 | 8 | 5 | 19 | 6.3 | 22 |
| 22611-06-06 | G3/8"X19 | 10 | 6 | 19.5 | 6.3 | 22 |
| 22611-06-08 | G3/8"X19 | 12 | 8 | 19.5 | 6.3 | 22 |
| 22611-08-06 | G1/2"X14 | 10 | 6 | 21 | 7.5 | 27 |
| 22611-08-08 | G1/2"X14 | 12 | 8 | 21.5 | 7.5 | 27 |
| 22611-10-08 | G5/8"X14 | 12 | 8 | 22 | 9.5 | 30 |
| 22611-10-10 | G5/8"X14 | 16 | 10 | 23.5 | 9.5 | 30 |
| 22611-12-08T | G3/4"X14 | 12 | 8 | 22 | 10.9 | 32 |
| 22611-12-10 | G3/4"X14 | 16 | 10 | 24 | 10.9 | 32 |
| 22611-12-12 | G3/4"X14 | 20 | 12 | 24 | 10.9 | 32 |
| 22611-16-12T | G1"X11 | 20 | 12 | 24 | 11.7 | 41 |
| 22611-16-16 | G1"X11 | 25 | 16 | 27 | 11.7 | 41 |
| 22611-20-16T | G1.1/4"X11 | 25 | 16 | 27.5 | 11 | 50 |
| 22611-20-20 | G1.1/4"X11 | 32 | 20 | 30.5 | 11 | 50 |
| 22611-24-20 | G1.1/2"X11 | 32 | 20 | 29.5 | 13 | 55 |
| 22611-24-24 | G1.1/2"X11 | 40 | 24 | 31 | 13 | 55 |
| 22611-32-24T | G2"X11 | 40 | 24 | 34 | 16 | 70 |
| 22611-32-32 | G2"X11 | 50 | 32 | 34 | 16 | 70 |
22611D

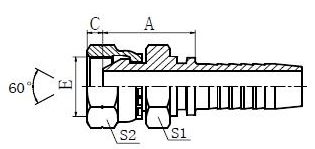

BSP FEMALE 60 CONE DOUBLE HEXAGON
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS |
| DN | DASH | C | S1 | S2 |
| 22611D-04-04 | G1/4"-19 | 6 | 4 | 5.5 | 19 | 19 |
| 22611D-06-06 | G3/8"-19 | 10 | 6 | 6.3 | 22 | 22 |
| 22611D-08-08 | G1/2"-14 | 12 | 8 | 7.5 | 27 | 27 |
| 22611D-10-08 | G5/8"-14 | 12 | 8 | 9.5 | 30 | 30 |
| 22611D-12-08 | G3/4"-14 | 12 | 8 | 10.9 | 32 | 32 |
| 22611D-12-12 | G3/4"-14 | 20 | 12 | 10.9 | 32 | 32 |
| 22611D-16-16 | G1"-11 | 25 | 16 | 11.7 | 41 | 41 |
| 22611D-20-20 | G1.1/2"-11 | 32 | 20 | 11 | 50 | 50 |
22641

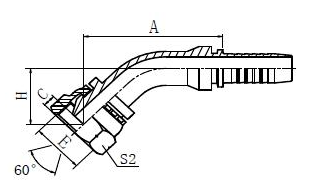

45 BSP FEMALE 60 CONE SEAT
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS |
| DN | DASH | A | C | H | S2 |
| 22641-04-04 | G1/4"X19 | 6 | 4 | 42.3 | 5.5 | 20.2 | 19 |
| 22641-06-04 | G3/8"X19 | 6 | 4 | 43.2 | 6.3 | 21 | 22 |
| 22641-06-05 | G3/8"X19 | 8 | 5 | 45.3 | 6.3 | 22 | 22 |
| 22641-06-06 | G3/8"X19 | 10 | 6 | 46.9 | 6.3 | 22.6 | 22 |
| 22641-08-06 | G1/2"X14 | 10 | 6 | 48.1 | 7.5 | 23.9 | 27 |
| 22641-08-08 | G1/2"X14 | 12 | 8 | 61.1 | 7.5 | 26.1 | 27 |
| 22641-10-08 | G5/8"X14 | 12 | 8 | 61.4 | 9.5 | 26.5 | 30 |
| 22641-10-10 | G5/8"X14 | 16 | 10 | 72.6 | 9.5 | 27.8 | 30 |
| 22641-12-08 | G3/4"X14 | 12 | 8 | 61.8 | 10.9 | 26.9 | 32 |
| 22641-12-10 | G3/4"X14 | 16 | 10 | 73 | 10.9 | 28.2 | 32 |
| 22641-12-12 | G3/4"X14 | 20 | 12 | 79.2 | 10.9 | 31.8 | 32 |
| 22641-16-12 | G1"X11 | 20 | 12 | 80.8 | 11.7 | 33.4 | 41 |
| 22641-16-16 | G1"X11 | 25 | 16 | 88.4 | 11.7 | 34.2 | 41 |
| 22641-20-16 | G1.1/4"X11 | 25 | 16 | 89.9 | 11 | 35.7 | 50 |
| 22641-20-20 | G1.1/4"X11 | 32 | 20 | 100.5 | 11 | 40 | 50 |
| 22641-24-24 | G1.1/2"X11 | 40 | 24 | 115.5 | 13 | 44.8 | 55 |
| 22641-32-32 | G2"X11 | 50 | 32 | 137.1 | 16 | 64.1 | 70 |
22691
90 BSP FEMALE 60 CONE SEAT
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS |
| DN | DASH | A | C | H | S2 |
| 22691-02-03 | G1/8"X28 | 5 | 3 | 26.5 | 5.5 | 31.5 | 14 |
| 22691-02-04 | G1/8"X28 | 6 | 4 | 30 | 5.5 | 34.5 | 14 |
| 22691-04-03 | G1/4"X19 | 5 | 3 | 26.5 | 5.5 | 33..5 | 19 |
| 22691-04-04 | G1/4"X19 | 6 | 4 | 30 | 5.5 | 36.5 | 19 |
| 22691-04-05 | G1/4"X19 | 8 | 5 | 33 | 5.5 | 39.5 | 19 |
| 22691-04-06 | G1/4"X19 | 10 | 6 | 30 | 5.5 | 36.5 | 19 |
| 22691-06-04 | G3/8"X19 | 6 | 4 | 30 | 6.3 | 37.7 | 22 |
| 22691-06-05 | G3/8"X19 | 8 | 5 | 33 | 6.3 | 40.7 | 22 |
| 22691-06-06 | G3/8"X19 | 10 | 6 | 35.3 | 6.3 | 43 | 22 |
| 22691-08-06 | G1/2"X14 | 10 | 6 | 35.3 | 7.5 | 45.75 | 27 |
| 22691-08-08 | G1/2"X14 | 12 | 8 | 41 | 7.5 | 51 | 27 |
| 22691-08-10 | G1/2"X14 | 16 | 10 | 56.5 | 7.5 | 55.5 | 27 |
| 22691-10-08 | G5/8"X14 | 12 | 8 | 41 | 9.5 | 51.5 | 30 |
| 22691-10-10 | G5/8"X14 | 16 | 10 | 56.5 | 9.5 | 56 | 30 |
| 22691-12-08 | G3/4"X14 | 12 | 8 | 41 | 10.9 | 52.1 | 32 |
| 22691-12-10 | G3/4"X14 | 16 | 10 | 56.5 | 10.9 | 56.6 | 32 |
| 22691-12-12 | G3/4"X14 | 20 | 12 | 65.5 | 10.9 | 66 | 32 |
| 22691-16-12 | G1"X11 | 20 | 12 | 65.5 | 11.7 | 68.3 | 41 |
| 22691-16-14 | G1"X11 | 22 | 14 | 71.2 | 11.7 | 69.3 | 41 |
| 22691-16-16 | G1"X11 | 25 | 16 | 76.7 | 11.7 | 73.8 | 41 |
| 22691-20-16 | G1.1/4"X11 | 25 | 16 | 76.7 | 11 | 76 | 50 |
| 22691-20-20 | G1.1/4"X11 | 32 | 20 | 91.5 | 11 | 87 | 50 |
| 22691-24-24 | G1.1/2"X11 | 40 | 24 | 109.4 | 13 | 102 | 55 |
| 22691-32-32 | G2"X11 | 50 | 32 | 131.8 | 16 | 125.25 | 70 |
