24 Cone O-ring Seal L.T. Fitting
Product Introduction
24 Cone O-ring Seal L.T. Fitting

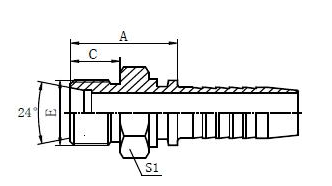

10511
METRIC MALE 24 CONE SEAT H.T.
ISO 8434-1-DIN 3861
| PART NO | THREAD E | HOSE BORE | TUBE O.D. | DIMENSIONS |
| DN | DASH | C | S1 |
| 10511-14-04 | M14X1.5 | 6 | 4 | 6 | 13.5 | 17 |
| 10511-16-04 | M16X1.5 | 6 | 4 | 8 | 13.5 | 17 |
| 10511-18-04 | M18X1.5 | 6 | 4 | 10 | 13.5 | 19 |
| 10511-20-05 | M20X1.5 | 8 | 5 | 12 | 13.5 | 22 |
| 10511-20-06 | M20X1.5 | 10 | 6 | 12 | 13.5 | 22 |
| 10511-22-05 | M22X1.5 | 8 | 5 | 14 | 14 | 24 |
| 10511-22-06 | M22X1.5 | 10 | 6 | 14 | 14 | 24 |
| 10511-24-08 | M24X1.5 | 12 | 8 | 16 | 14 | 27 |
| 10511-30-10 | M30X2 | 16 | 10 | 20 | 19 | 32 |
| 10511-30-12 | M30X2 | 20 | 12 | 20 | 19 | 32 |
| 10511-36-12 | M36X2 | 20 | 12 | 25 | 20 | 38 |
| 10511-36-16 | M36X2 | 25 | 16 | 25 | 20 | 38 |
| 10511-42-16 | M42X2 | 25 | 16 | 30 | 20 | 46 |
| 10511-42-20 | M42X2 | 32 | 20 | 30 | 20 | 46 |
| 10511-52-20 | M52X2 | 32 | 20 | 38 | 22 | 55 |

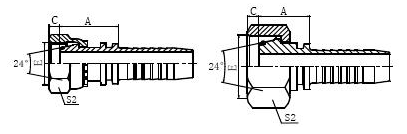

20511/20511-T
METRIC FEMALE 24 CONE O-RING H.T
ISO 12151-2--DIN 3865
| PART NO. | THREAD E | HOSE BORE | TUBE O.D. | O-RING | DIMENSIONS |
| DN | DASH | A | C | S2 |
| 20511-16-04 | M16X1.5 | 6 | 4 | 8 | 6.0X1.5 | 29 | 1.5 | 22 |
| 20511-16-05 | M16X1.5 | 8 | 5 | 8 | 6.0X1.5 | 29 | 1.5 | 22 |
| 20511-18-04T | M18X1.5 | 6 | 4 | 10 | 7.5X1.5 | 26.5 | 2 | 22 |
| 20511-18-06 | M18X1.5 | 10 | 6 | 10 | 7.5X1.5 | 29 | 2 | 24 |
| 20511-20-04T | M20X1.5 | 6 | 4 | 12 | 9.5X1.5 | 28.5 | 2.5 | 24 |
| 20511-20-05T | M20X1.5 | 8 | 5 | 12 | 9.5X1.5 | 28.5 | 2.5 | 24 |
| 20511-20-06T | M20X1.5 | 10 | 6 | 12 | 9.5X1.5 | 28.5 | 2.5 | 24 |
| 20511-20-08 | M20X1.5 | 12 | 8 | 12 | 9.5X1.5 | 31.5 | 2.5 | 27 |
| 20511-22-06T | M22X1.5 | 10 | 6 | 14 | 10.0X2.0 | 28.5 | 2.5 | 27 |
| 20511-22-08 | M22X1.5 | 12 | 8 | 14 | 10.0X2.0 | 31.5 | 2.5 | 27 |
| 20511-24-06T | M24X1.5 | 10 | 6 | 16 | 12.0X2.0 | 28.5 | 2.5 | 30 |
| 20511-24-08T | M24X1.5 | 12 | 8 | 16 | 12.0X2.0 | 30 | 3 | 30 |
| 20511-30-08T | M30X2 | 12 | 8 | 20 | 16.3X2.4 | 35 | 3 | 36 |
| 20511-30-10T | M30X2 | 16 | 10 | 20 | 16.3X2.4 | 36 | 3 | 36 |
| 20511-30-12 | M30X2 | 20 | 12 | 20 | 16.3X2.4 | 39 | 3 | 36 |
| 20511-30-14 | M30X2 | 22 | 14 | 20 | 16.3X2.4 | 39 | 3 | 36 |
| 20511-36-12T | M36X2 | 20 | 12 | 25 | 20.3X2.4 | 36 | 3 | 41 |
| 20511-36-14T | M36X2 | 22 | 14 | 25 | 20.3X2.4 | 36 | 3 | 41 |
| 20511-36-16 | M36X2 | 25 | 16 | 25 | 20.3X2.4 | 40.5 | 3 | 41 |
| 20511-42-12T | M42X2 | 20 | 12 | 30 | 25.3X2.4 | 40 | 5 | 50 |
| 20511-42-16T | M42X2 | 25 | 16 | 30 | 25.3X2.4 | 41 | 5 | 50 |
| 20511-42-20 | M42X2 | 32 | 20 | 30 | 25.3X2.4 | 46 | 5 | 50 |
| 20511-52-20T | M52X2 | 32 | 20 | 38 | 33.3X2.4 | 44 | 6.5 | 60 |
| 20511-52-24T | M52X2 | 40 | 24 | 38 | 33.3X2.4 | 44 | 6.5 | 60 |

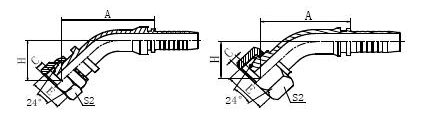

20541/20541-T
45 METRIC FEMALE 24 CONE O-RING H.T
ISO 12151-2--DIN 3865
| PART NO. | THREAD E | HOSE BORE | TUBE O.D. | O-RING? | DIMENSIONS |
| DN | DASH | A | C | H | S2 |
| 20541-16-04 | M16X1.5 | 6 | 4 | 8 | 6.0X1.5 | 50.4 | 1.5 | 28.3 | 22 |
| 20541-16-05 | M16X1.5 | 8 | 5 | 8 | 6.0X1.5 | 52.2 | 1.5 | 28.9 | 22 |
| 20541-18-04T | M18X1.5 | 6 | 4 | 10 | 7.5X1.5 | 43.4 | 2 | 21.3 | 22 |
| 20541-18-06 | M18X1.5 | 10 | 6 | 10 | 7.5X1.5 | 54.3 | 2 | 29.6 | 24 |
| 20541-20-04T | M20X1.5 | 6 | 4 | 12 | 9.0X1.5 | 45.5 | 2.5 | 23.4 | 24 |
| 20541-20-05T | M20X1.5 | 8 | 5 | 12 | 9.0X1.5 | 48.1 | 2.5 | 24.3 | 24 |
| 20541-20-06T | M20X1.5 | 10 | 6 | 12 | 9.0X1.5 | 49.7 | 2.5 | 25 | 24 |
| 20541-20-08 | M20X1.5 | 12 | 8 | 12 | 9.0X1.5 | 67.8 | 2.5 | 32.8 | 27 |
| 20541-22-06T | M22X1.5 | 10 | 6 | 14 | 10.0X2.0 | 49.6 | 2.5 | 25.3 | 27 |
| 20541-22-08 | M22X1.5 | 12 | 8 | 14 | 10.0X2.0 | 68.1 | 2.5 | 33.2 | 27 |
| 20541-24-08T | M24X1.5 | 12 | 8 | 16 | 12.0X2.0 | 62.5 | 3 | 27.5 | 30 |
| 20541-24-10 | M24X1.5 | 16 | 10 | 16 | 12.0X2.0 | 80.7 | 2.5 | 35.9 | 30 |
| 20541-30-10T | M30X2 | 16 | 10 | 20 | 16.3X2.4 | 75.8 | 3 | 31 | 36 |
| 20541-30-12 | M30X2 | 20 | 12 | 20 | 16.3X2.4 | 90.5 | 3 | 42.4 | 36 |
| 20541-36-12T | M36X2 | 20 | 12 | 25 | 20.3X2.4 | 82.7 | 3 | 34.6 | 41 |
| 20541-36-14T | M36X2 | 22 | 14 | 25 | 20.3X2.4 | 84.4 | 3 | 34 | 41 |
| 20541-36-16 | M36X2 | 25 | 16 | 25 | 20.3X2.4 | 99.7 | 3 | 44.2 | 41 |
| 20541-42-16T | M42X2 | 25 | 16 | 30 | 25.3X2.4 | 92.3 | 5 | 36.8 | 50 |
| 20541-42-20 | M42X2 | 32 | 20 | 30 | 25.3X2.4 | 110.8 | 5 | 50 | 50 |
| 20541-52-20T | M52X2 | 32 | 20 | 38 | 33.3X2.4 | 103.4 | 6.5 | 41.2 | 60 |
| 20541-52-24T | M52X2 | 40 | 24 | 38 | 33.3X2.4 | 115.9 | 6.5 | 45.1 | 60 |

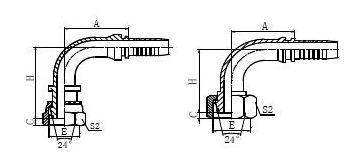

20591/20591-T
90 METRIC FEMALE 24 CONE O-RING H.T
ISO 12151-2--DIN 3865
| PART NO. | THREAD E | HOSE BORE | TUBE O.D. | O-RING? | DIMENSIONS |
| DN | DASH | A | C | H | S2 |
| 20591-16-04 | M16X1.5 | 6 | 4 | 8 | 6.5X1.5 | 30 | 1.5 | 48 | 22 |
| 20591-16-05 | M16X1.5 | 8 | 5 | 8 | 6.5X1.5 | 33 | 1.5 | 51 | 22 |
| 20591-18-04T | M18X1.5 | 6 | 4 | 10 | 8.5X1.5 | 30 | 2 | 39.5 | 22 |
| 20591-18-05T | M18X1.5 | 8 | 5 | 10 | 8.5X1.5 | 33 | 2 | 41.5 | 22 |
| 20591-18-06 | M18X1.5 | 10 | 6 | 10 | 8.5X1.5 | 35.3 | 2 | 52.8 | 24 |
| 20591-20-04T | M20X1.5 | 6 | 4 | 12 | 10.5X1.5 | 30 | 2.5 | 41 | 24 |
| 20591-20-05T | M20X1.5 | 8 | 5 | 12 | 10.5X1.5 | 33.5 | 2.5 | 44 | 24 |
| 20591-20-06T | M20X1.5 | 10 | 6 | 12 | 10.5X1.5 | 35.8 | 2.5 | 46.3 | 24 |
| 20591-20-08 | M20X1.5 | 12 | 8 | 12 | 10.5X1.5 | 41 | 2.5 | 61 | 27 |
| 20591-22-06T | M22X1.5 | 10 | 6 | 14 | 12.0X2.0 | 35.3 | 2.5 | 46.8 | 27 |
| 20591-22-08 | M22X1.5 | 12 | 8 | 14 | 12.0X2.0 | 41 | 2.5 | 61 | 27 |
| 20591-24-06T | M24X1.5 | 10 | 6 | 16 | 13.0X2.0 | 35.3 | 3 | 46.3 | 30 |
| 20591-24-08T | M24X1.5 | 12 | 8 | 16 | 13.0X2.0 | 41 | 3 | 53 | 30 |
| 20591-24-10 | M24X1.5 | 16 | 10 | 16 | 13.0X2.0 | 56.5 | 2.5 | 67.5 | 30 |
| 20591-30-10T | M30X2 | 16 | 10 | 20 | 16.3X2.4 | 56.5 | 3 | 60.5 | 36 |
| 20591-30-12 | M30X2 | 20 | 12 | 20 | 16.3X2.4 | 65.5 | 3 | 81 | 36 |
| 20591-36-12T | M36X2 | 20 | 12 | 25 | 20.3X2.4 | 66.2 | 3 | 70 | 41 |
| 20591-36-14T | M36X2 | 22 | 14 | 25 | 20.3X2.4 | 71.2 | 3 | 71 | 41 |
| 20591-36-16 | M36X2 | 25 | 16 | 25 | 20.3X2.4 | 78 | 3 | 88 | 41 |
| 20591-42-16T | M42X2 | 25 | 16 | 30 | 25.3X2.4 | 78 | 5 | 77.5 | 50 |
| 20591-42-20 | M42X2 | 32 | 20 | 30 | 25.3X2.4 | 91.5 | 5 | 101.5 | 50 |
| 20591-52-20T | M52X2 | 32 | 20 | 38 | 33.3X2.4 | 93 | 6.5 | 89 | 60 |
| 20591-52-24T | M52X2 | 40 | 24 | 38 | 33.3X2.4 | 109.4 | 6.5 | 102.5 | 60 |
