BSP Banjo Fitting

BSP Banjo Fitting

Product Introduction

BSP Banjo Fitting

72011

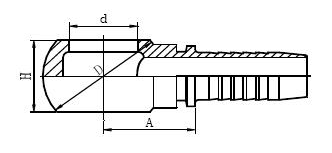

BSP BANJO

PART NO.	THREAD E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	d	D	H
72011-04-04	G1/4"-19	6	4	13.3	24	15
72011-06-05	G3/8"-19	8	5	16.7	29	20
72011-06-06	G3/8"-19	10	6	16.7	29	20
72011-08-06	G1/2"-14	10	6	21	38	25
72011-08-08	G1/2"-14	12	8	21	38	25
72011-10-10	G5/8"-14	16	10	23	40	27
72011-12-12	G3/4"-14	20	12	26.5	48	31
72011-16-16	G1"-11	25	16	33.3	60	42

720B

BSP BOLT

PART NO.	THREAD E	DIMENSIONS
PART NO.	THREAD E	A	B	C	S1
720B-04	G1/4"-19	28.5	6	6	19
720B-06	G3/8"-19	38.5	9	7	22
720B-08	G1/2"-14	44	13	8.5	27
720B-10	G5/8"-14	48.5	15	10	30
720B-12	G3/4"-14	56	18	10	32
720B-16	G1"-11	68.5	22	13	41
