Water hose

Water hose

Product Introduction

Water Hose

Tube: SBR blended, black, smooth

Reinforcement: textile braided high tensile synthetic yarn

Cover: EPDM/SBR blended, black, or red, Weather and Abrasion resistant, smooth or fluted

Applications: general water service in industry, gardens, garage spray, watering lawns.

Temperature: -30°C + 80°C

Brading: as request

Length: 40,50,60M

Packing: trans. P.V.C. film

150PSI

HOSE ID		working pressure		MIN BURST PRESSURE		O.D.	Weight	length	Min.Bend Rad
inch	mm	Bar	psi	Bar	psi	mm	kg/m	M/roll	mm
1/4	6	10	150	30	450	14.4	0.182	50	63
5/16	8	10	150	30	450	16.3	0.217	50	80
3/8	10	10	150	30	450	17.9	0.246	50	100
1/2	13	10	150	30	450	21.2	0.307	50	130
5/8	16	10	150	30	450	25	0.395	50	160
3/4	19	10	150	30	450	29.4	0.481	50	190
1	25	10	150	30	450	35.3	0.741	60	150
1 1/4	32	10	150	30	450	42.2	0.901	60	200
1 3/8	35	10	150	30	450	45.2	0.972	60	250
1 1/2	38	10	150	30	450	48.2	1.045	60	250
1 3/4	45	10	150	30	450	55.6	1.293	60	300
2	51	10	150	30	450	61.8	1.474	60	300
2 3/8	60	10	150	30	450	69	1.395	60	380
2 1/2	63	10	150	30	450	72	1.459	60	380
2 3/4	70	10	150	30	450	79	1.609	60	450
3	76	10	150	30	450	85.4	1.928	60	450
3 3/16	80	10	150	30	450	91	2.254	60	480
3 1/2	90	10	150	30	450	101	2.514	60	550
4	102	10	150	30	450	113	2.826	60	600
5	127	10	150	30	450	139	3.865	30	750
6	152	10	150	30	450	164.4	4.951	30	900
8	204	10	150	30	450	217.8	7.536	15	1400

300PSI

HOSE ID		working pressure		MIN BURST PRESSURE		O.D.	Weight	length	Min.Bend Rad
inch	mm	Bar	psi	Bar	psi	mm	kg/m	M/roll	mm
1/4	6	20	300	60	900	14.6	0.186	50	63
5/16	8	20	300	60	900	16.5	0.222	50	80
3/8	10	20	300	60	900	18.1	0.251	50	100
1/2	13	20	300	60	900	21.4	0.311	50	130
5/8	16	20	300	60	900	25.3	0.398	50	160
3/4	19	20	300	60	900	31.6	0.632	50	190
1	25	20	300	60	900	35.3	0.758	60	150
1 1/4	32	20	300	60	900	42.3	0.931	60	200
1 3/8	35	20	300	60	900	45.3	1.105	60	250
1 1/2	38	20	300	60	900	48.3	1.079	60	250
1 3/4	45	20	300	60	900	55.6	1.361	60	300
2	51	20	300	60	900	61.8	1.541	60	300
2 3/8	60	20	300	60	900	69.4	1.55	60	380
2 1/2	63	20	300	60	900	74.4	1.922	60	380
2 3/4	70	20	300	60	900	81.4	2.114	60	450
3	76	20	300	60	900	87.8	2.473	60	450
3 3/16	80	20	300	60	900	91.8	2.593	60	480
3 1/2	90	20	300	60	900	101.8	2.889	60	550
4	102	20	300	60	900	114.2	3.503	60	600
5	127	20	300	60	900	143.8	5.513	30	750
6	152	20	300	60	900	172.6	8	30	900
8	204	20	300	60	900	230.4	13.53	15	1400

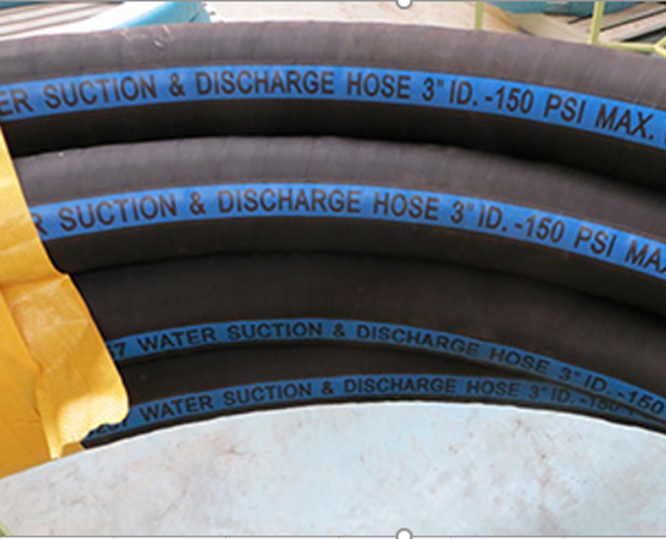

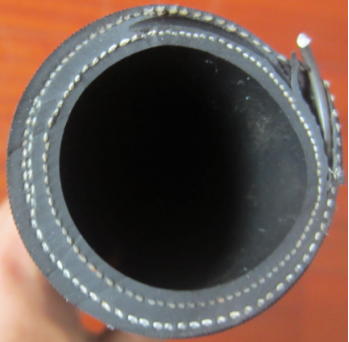

Water Suction Hose

Tube: black SBR/NR compound

Reinforcement: by Nylon cord ply with 1 helix steel wire embedded.

Cover: black EPDM compound, cloth surface with water and weather resistant.

Applications: for water suction and delivery service.

Temperature: -30°C + 80°C

Packing: trans. P.V.C. film

150PSI

HOSE ID		working pressure		MIN BURST PRESSURE		O.D.	Weight	length	Min.Bend Rad
inch	mm	Bar	psi	Bar	psi	mm	kg/m	M/roll	mm
3/4	19	10	150	30	450	29.4	0.67	60	120
1	25	10	150	30	450	35.5	0.84	60	150
1 1/4	32	10	150	30	450	43.4	1.12	60	200
1 3/8	35	10	150	30	450	46.2	1.19	60	250
1 1/2	38	10	150	30	450	49.5	1.31	60	250
1 3/4	45	10	150	30	450	56.7	1.51	60	300
2	51	10	150	30	450	63	1.74	60	350
2 3/8	60	10	150	30	450	73.6	2.33	60	380
2 1/2	63	10	150	30	450	76.6	2.38	60	380
2 3/4	70	10	150	30	450	85.4	2.91	60	450
3	76	10	150	30	450	92	3.29	60	450
3 3/16	80	10	150	30	450	96	3.52	60	500
3 1/2	90	10	150	30	450	106	3.86	60	550
4	102	10	150	30	450	118.2	4.52	60	600
5	127	10	150	30	450	145.2	6.26	30	750
6	152	10	150	30	450	171.8	8.69	30	900
8	204	10	150	30	450	225	13.76	15	1150

300PSI

HOSE ID		working pressure		MIN BURST PRESSURE		O.D.	Weight	length	Min.Bend Rad
inch	mm	Bar	psi	Bar	psi	mm	kg/m	M/roll	mm
3/4	19	20	300	60	900	29.4	0.665	60	120
1	25	20	300	60	900	35.5	0.836	60	150
1 1/4	32	20	300	60	900	43.4	1.143	60	200
1 3/8	35	20	300	60	900	46.2	1.21	60	250
1 1/2	38	20	300	60	900	49.5	1.336	60	250
1 3/4	45	20	300	60	900	56.7	1.59	60	300
2	51	20	300	60	900	63	1.823	60	350
2 3/8	60	20	300	60	900	75.2	2.344	60	380
2 1/2	63	20	300	60	900	78.2	2.393	60	380
2 3/4	70	20	300	60	900	85.2	2.987	60	450
3	76	20	300	60	900	91.4	3.383	60	450
3 3/16	80	20	300	60	900	96	3.611	60	500
3 1/2	90	20	300	60	900	106.4	3.956	60	550
4	102	20	300	60	900	118.4	5.246	60	600
5	127	20	300	60	900	145.4	6.583	30	750
6	152	20	300	60	900	171.4	8.606	30	900
8	204	20	300	30	450	227	15.6	15	1150
