Rubber Washing Machine Hose Assembly

Rubber Washing Machine Hose Assembly
Product Introduction

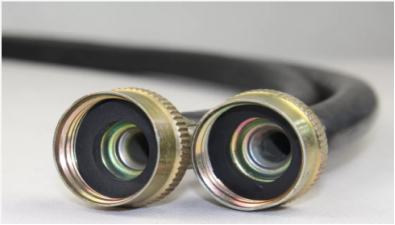

Rubber Washing Machine Hose Assembly


ID 3/8" and 1/2" Rubber Washing Machine Hose Assembly with fittings


Construction: Tube: NR& SBR or EPDM synthetic rubber.

Reinforcement: Polyester yarn reinforcement.

Cover: NR & SBR or EPDM synthetic rubber.

Temperature: -10℃ - +80℃

Color: Black, Red, Blue, Green, Orange, etc.

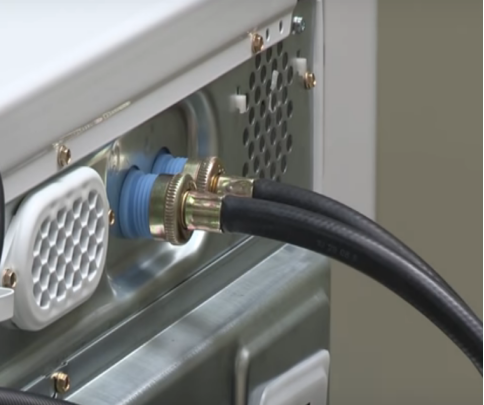

Application: Mainly used for conveying of hot water or cold water for washing machine.

Standard length: 4ft, 5ft, 6ft, 8ft, 10ft, 12ft, 15ft

Specification of rubber washing machine hose:


Inner DiameterOuter DiameterWorking PressureBurst PressureLength
inchmmmmbarpsibarpsift/pc
3/8"9.5161420055 8006
1/2”12.7211420055 8006


1,Specification of fittings: 3/4" female hose ends on two ends; Or one end male, the other end female.

2, Specification of fittings: BSP-Metric thread female w/90 degree connector x standard female thread


Rubber washing machine Y mixer hose:


12" arms individually bagged;

Temperating: -10C to 80c(-14F to 176F);

 Fitting sizes: 3/8" single male and two 3/4" female fittings.

For use to connect single inlet to washing machine inlet valve

Hose Specification:


Inner DiameterOuter DiameterWorking PressureBurst PressureLength
inchmmmmbarpsibarpsift/pc
3/8"9.5161420055 80012


ESTAR Rubber washing machine hose assembly, is popular in USA, Canada market, made of non-recycled rubber, according to ISO 1403--1986 standard.ESTAR can crimp the specified fittings and quick released coupling  for you.
