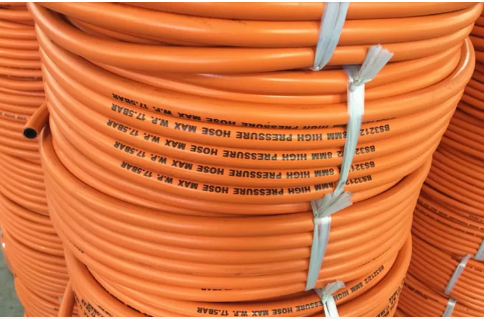

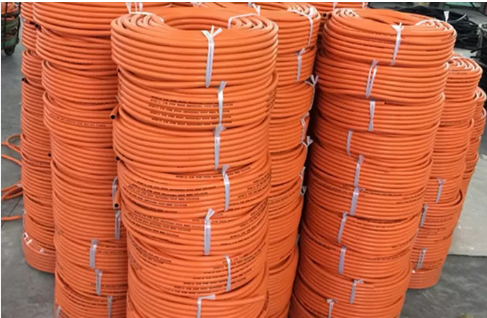

L.P.G.(Propane) Hose
Tube: NBR, black, smooth
Reinforcement: textile braided high tensile synthetic yarn
Cover: Orange NEOPRENE Blended, ozone and weather-proof, smooth
Applications: for conveyance of liquid gas, home burner system, grill, oil-resistant
Temperature: -35°C + 90°C
Brading: as request
Length: as request
Packing: trans. P.V.C. film
| ID (mm) | ID (inch) | Wall (mm) | WP (bar) | BP (bar) | Radius (mm) | Weight (kg/m) |
| 5 | 3月16日 | 3,0 | 12 | 60 | 18 | 0.13 |
| 6 | 1月4日 | 3,6 | 12 | 60 | 20 | 0.15 |
| 8 | 5月16日 | 3,5 | 12 | 60 | 27 | 0.2 |
| 10 | 3月8日 | 3,5 | 12 | 60 | 33 | 0.26 |
| BS 3212/2 DIN4815 |
