Jackhammer Hose Assembly
Tube: EPDM/SBR Blended
Spiral or braided polyester reinforcement
Cover: EPDM/SBR blended, wrapped or smooth, abrasion, ozone and sunlight resistant
WP:300psi, BP:1200psi
Temperature range of -28°F to 176°F(-33°C~80°C)
Colors available: matt red, yellow, blue, green.

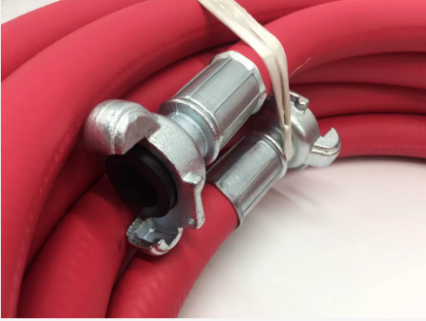

Assembly coupled with universal couplings attached with 2 Band-it clamps each end.
Standard length:50ft/ roll
Quality standard: EN 559
Application: Mainly used for air compressor and pneumatic tool.
| Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Length | Weight | |||
| inch | mm | mm | bar | psi | bar | psi | ft/pc | kg/pc |
| 3/4" | 19 | 28 | 17 | 250 | 50 | 750 | 50 | 10 |
| 3/4" | 19 | 28 | 17 | 250 | 50 | 750 | 100 | 19.8 |
| 3/4" | 19 | 29 | 20 | 300 | 60 | 900 | 50 | 11 |
| 3/4" | 19 | 29 | 20 | 300 | 60 | 900 | 100 | 21.8 |
| 1" | 25.4 | 36 | 14 | 200 | 40 | 600 | 50 | 14.5 |
| 1" | 25.4 | 36 | 14 | 200 | 40 | 600 | 100 | 28.8 |
| 1" | 25.4 | 37 | 20 | 300 | 60 | 900 | 50 | 15.5 |
| 1" | 25.4 | 37 | 20 | 300 | 60 | 900 | 100 | 30.8 |
